Insulator, Engine Mount, Right: Installation

WARNING: This page is about a different variant/trim than selected.

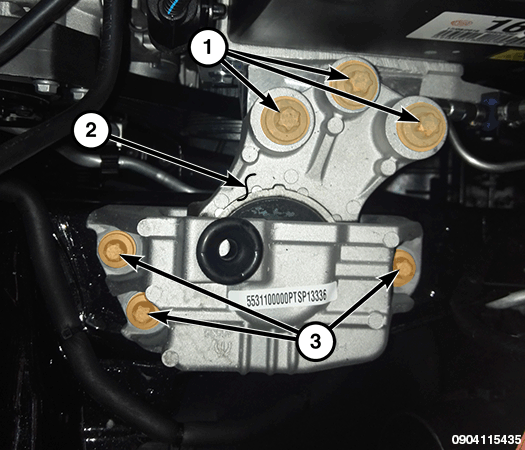

GC0177149Courtesy of CHRYSLER GROUP, LLC
  1. Position the right engine mount (2) between the engine and the frame rail. Make sure the mount is flush to the frame rail.
  2. Install the three engine mount to frame bolts (3) finger tight.
  3. Install the three engine mount to timing cover bolts (1) finger tight.
  4. Remove the jack stand.
  5. Tighten the three engine mount to frame bolts (3) to the proper specification. Refer to TORQUE SPECIFICATIONS  .
  6. Tighten the three engine mount to timing cover bolts (1) to the proper specification. Refer to TORQUE SPECIFICATIONS  .
  7. Install the air cleaner body (Refer to BODY, AIR CLEANER INSTALLATION  .
