Cylinder Head: Description

WARNING: This page is about a different variant/trim than selected.

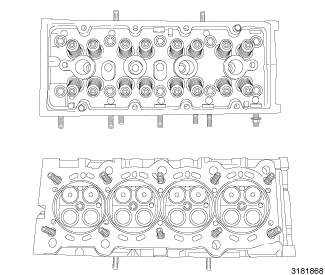

GC0153052Courtesy of CHRYSLER GROUP, LLC

The 1.4L aluminum cylinder head features four valves per cylinder with pressed in metal valve guides. The valve guides are not serviceable.
