Rear Flexible Hose

WARNING: This page is about a different variant/trim than selected.

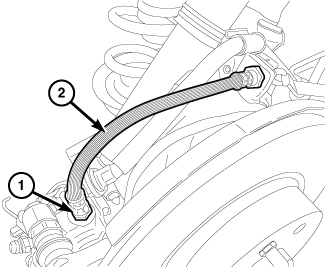

GC0153699Courtesy of CHRYSLER GROUP, LLC
  1. Position the flexible brake hose (2) near the installed position.
  2. Install the rear brake hose fitting (1) to the caliper and tighten to 16 Nm (142 lbf-in).

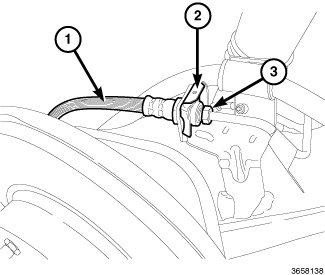

    GC0153698Courtesy of CHRYSLER GROUP, LLC
  3. Position the flexible brake hose (1) through the bracket and install the retaining clip (2).
  4. Install the solid brake line fitting (3) and tighten to 18 Nm (159 lbf-in).
  5. Install the tire and wheel assembly. Refer to INSTALLATION .
  6. Lower the vehicle.
  7. Remove the prop rod from the brake pedal.
  8. Bleed the area of repair for the brake system. If a proper pedal is not felt during bleeding an area of repair then a base bleed system must be performed  . Refer to BASE BRAKE BLEEDING  .
