Solenoid, Evaporative Emissions Purge: Removal

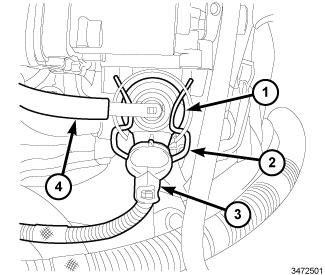

GC0153563Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative battery cable.
  2. Disconnect the vacuum hose (4) from purge solenoid (1).
  3. Disconnect the electrical connector (3) from the purge solenoid (1).
  4. Remove the retaining clip (2) and the purge solenoid (1) from the intake manifold.
