Module, Anti-Lock Brake System (Abs): Removal

Due to packaging and limited space it is necessary to remove and disassemble the Integrated Control Unit (ICU) to service the Antilock Brake Module (ABM) on this vehicle. Refer to INTEGRATED CONTROL UNIT (ICU), REMOVAL .

Courtesy of CHRYSLER GROUP, LLC

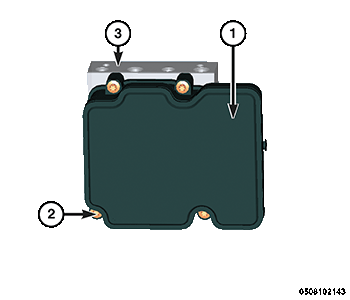

1. Remove the four bolts (2) attaching the Anti-lock Brake system (ABS) Module (1) to the Hydraulic Control Unit (HCU) (3).
2. Carefully separate the ABS (1) from the HCU (3).
