Body - Interior & Exterior - 500 - Except Electric: Hood: Hood: Installation

Courtesy of CHRYSLER GROUP, LLC

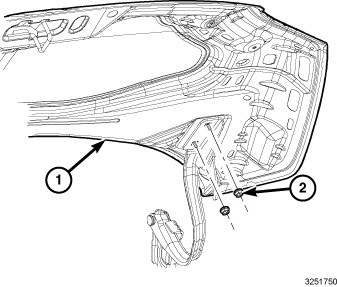

1. With the help of an assistant, align the hood (1) with hinge holes.
2. Align nuts with scribed marks and install the nuts (2) on studs.
3. Tighten the nuts to 20 Nm (15 lbf-ft).
4. Repeat for the opposite side.
