DECKLID/Hatch/Liftgate/Tailgate/Swing Gate: Hinge: Removal

Courtesy of CHRYSLER GROUP, LLC

1. Remove the liftgate. Refer to REMOVAL  .

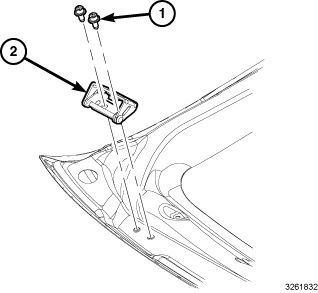

2. Using a china maker/grease pen or equivalent, make reference marks where the hinge (2) is mounted. Repeat for the opposite side.
3. Remove the fasteners (1) securing the hinge (2) to the liftgate. Repeat on the opposite side.
