B0111-96-Driver Remote Acceleration Sensor (Satellite) - Component Internal Failure: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .

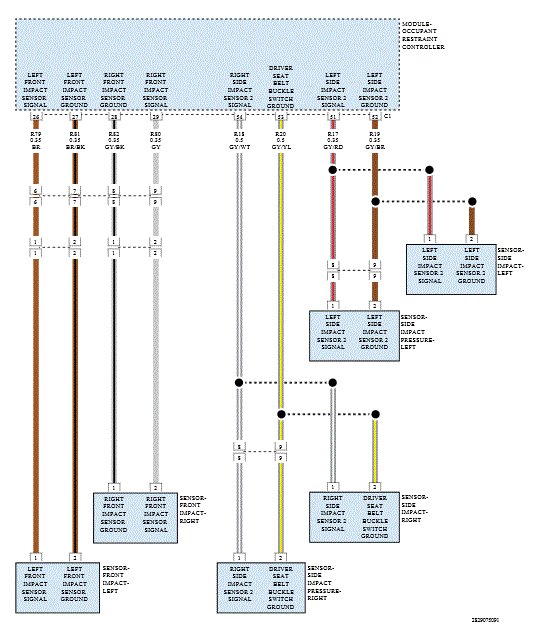

Fig 1: Front And Side Impact/Pressure Sensors Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
