C1408-77-Electric Park Brake Request Actuation Fault Motor Left - Commanded Position Not Reachable: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .

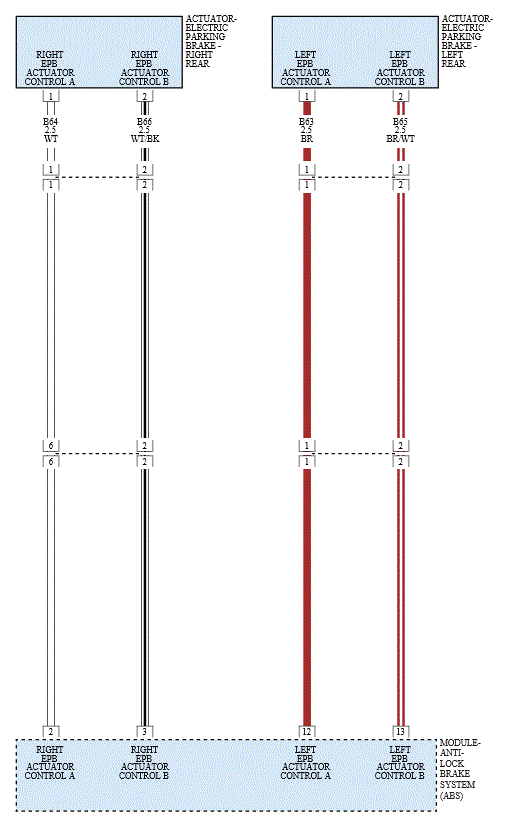

Fig 1: Electric Parking Brake Actuators Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
