B1404-13-Channel 5 Audio Speaker Output - Circuit Open: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .

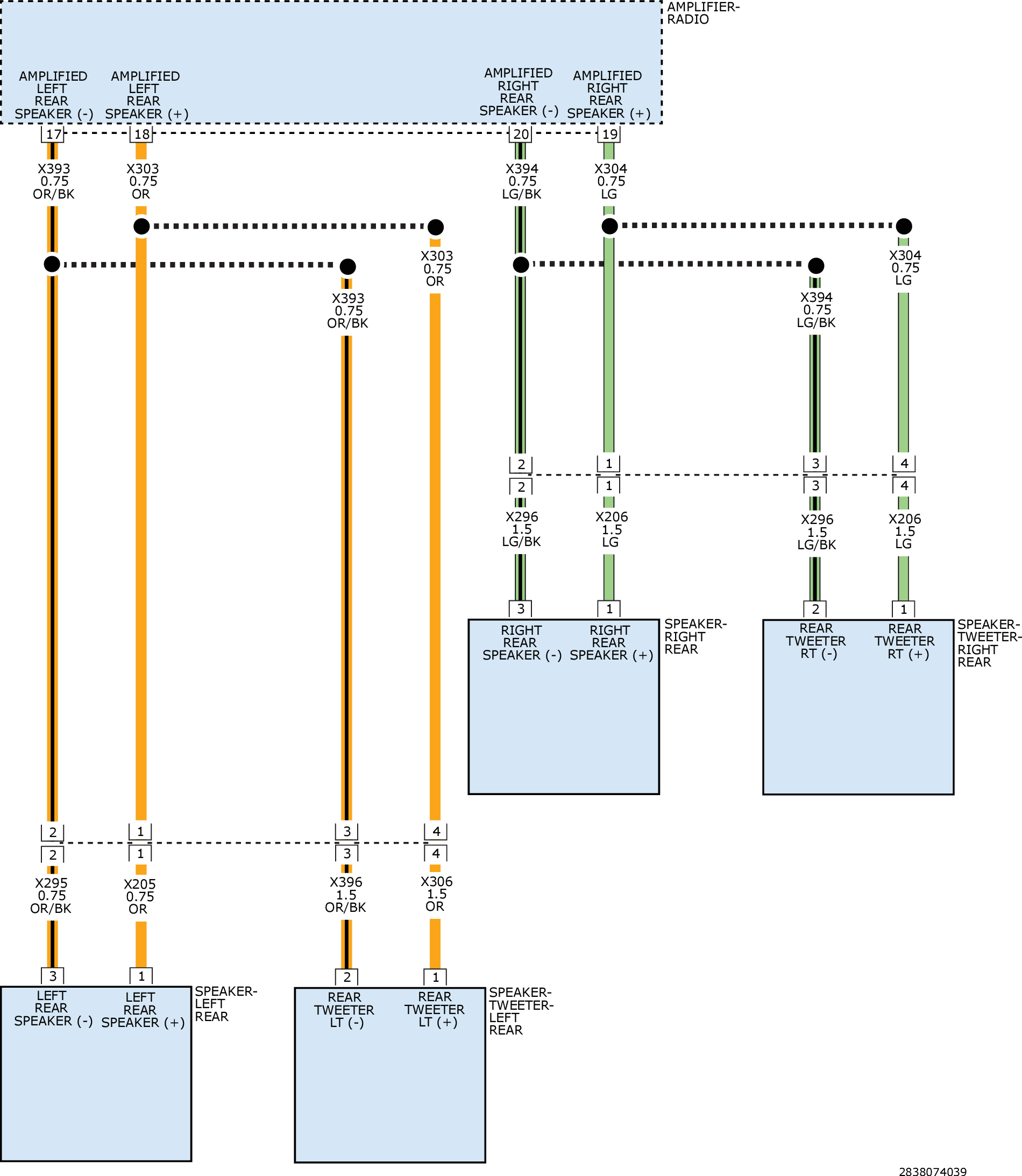

Fig 1: Rear Speakers Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
