Input Shaft, Transmission: Disassembly: Disassembly

WARNING: This page is about a different variant/trim than selected.

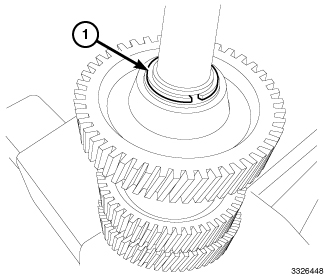

Fig 1: Snap Ring

Courtesy of CHRYSLER GROUP, LLC

Remove the right hand thread rear bearing retention bolt and discard.
Remove the snap ring (1) from the input shaft.

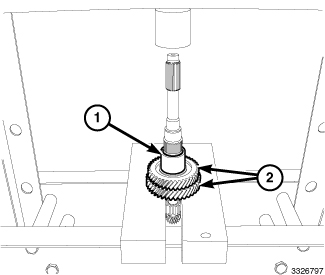

Fig 2: Removing Front Bearing & Forth-Sixth Gear
Courtesy of CHRYSLER GROUP, LLC
Remove the front bearing (1) and the forth-sixth gear (2) using a press and (special tool #1130, Splitter, Bearing/Gear).

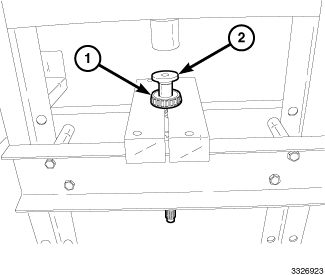

Fig 3: Splitter, Bearing/Gear
Courtesy of CHRYSLER GROUP, LLC

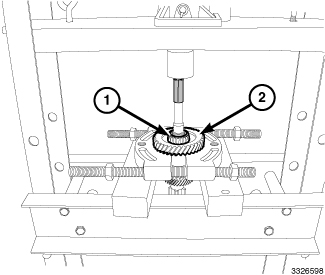

Fig 4: Removing Sleeve & Third-Fifth Gears
Courtesy of CHRYSLER GROUP, LLC
Remove the sleeve (1) and the third-fifth gears (2) using a press and plates.

Fig 5: Removing Rear Bearing
Courtesy of CHRYSLER GROUP, LLC
Remove the rear bearing (1) using (special tool #MD998200, Installer, Seal) and plates.
