Bracket, Engine Mount, Right: Installation: Installation

Fig 1: RH Engine Mount Bracket & Bolts

Courtesy of CHRYSLER GROUP, LLC

Install the right engine mount bracket (1) with six bolts (2) tightened to 25 N.m (18 ft. lbs.).

Fig 2: Upper Timing Belt Cover & Bolts
Courtesy of CHRYSLER GROUP, LLC
Install the upper timing belt cover (1) with two bolts (2 and 3) tightened to 9 N.m (80 in. lbs.).

Fig 3: Upper Timing Belt Cover, Evaporative Emissions Purge Hose, Coolant Pump Return Hose & Wastegate Solenoid Pressure Inlet Hose
Courtesy of CHRYSLER GROUP, LLC
Engage the following retainers to the upper timing belt cover (1):
- Wastegate solenoid pressure inlet hose (2).
- After run coolant pump return hose (3).
- Evaporative emissions purge hose (4).
Fig 4: Wastegate Actuator Hose, Solenoid, Electrical Connector, Vacuum Supply Hose & Nut
Courtesy of CHRYSLER GROUP, LLC
Position the turbocharger wastegate solenoid (4). Install the bolt (5) and tighten to 9 N.m (80 in. lbs.).

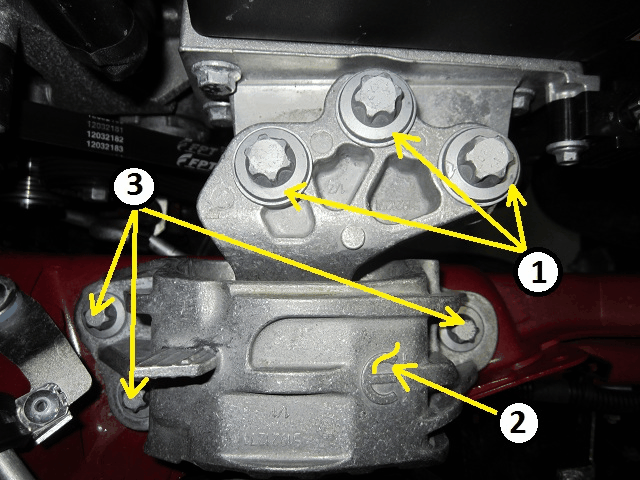

Fig 5: RH Engine Mount Isolator & Bolts
Courtesy of CHRYSLER GROUP, LLC
Set the right engine mount isolator (2) into position.
Install the right mount to frame bolts (3) finger tight.
Install the right mount to engine bracket bolts (1) finger tight.
Tighten the right mount to frame rail bolts (3) to 60 N.m (44 ft. lbs.).
Tighten the right mount to engine bracket bolts (1) to 60 N.m (44 ft. lbs.).
Remove the floor jack supporting the engine.

Fig 6: Air Cleaner Body & Components
Courtesy of CHRYSLER GROUP, LLC
Install the pressurized coolant bottle.
Refer to BOTTLE, PRESSURIZED COOLANT, INSTALLATION .
Install the air cleaner body. Refer to BODY, AIR CLEANER, INSTALLATION .
Connect the battery negative cable and tighten nut to 5 N.m (45 in. lbs.).
Install the belly pan. Refer to BELLY PAN, INSTALLATION .
