B0111-64-Driver Remote Acceleration Sensor (Satellite) - Signal Plausibility Failure: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .

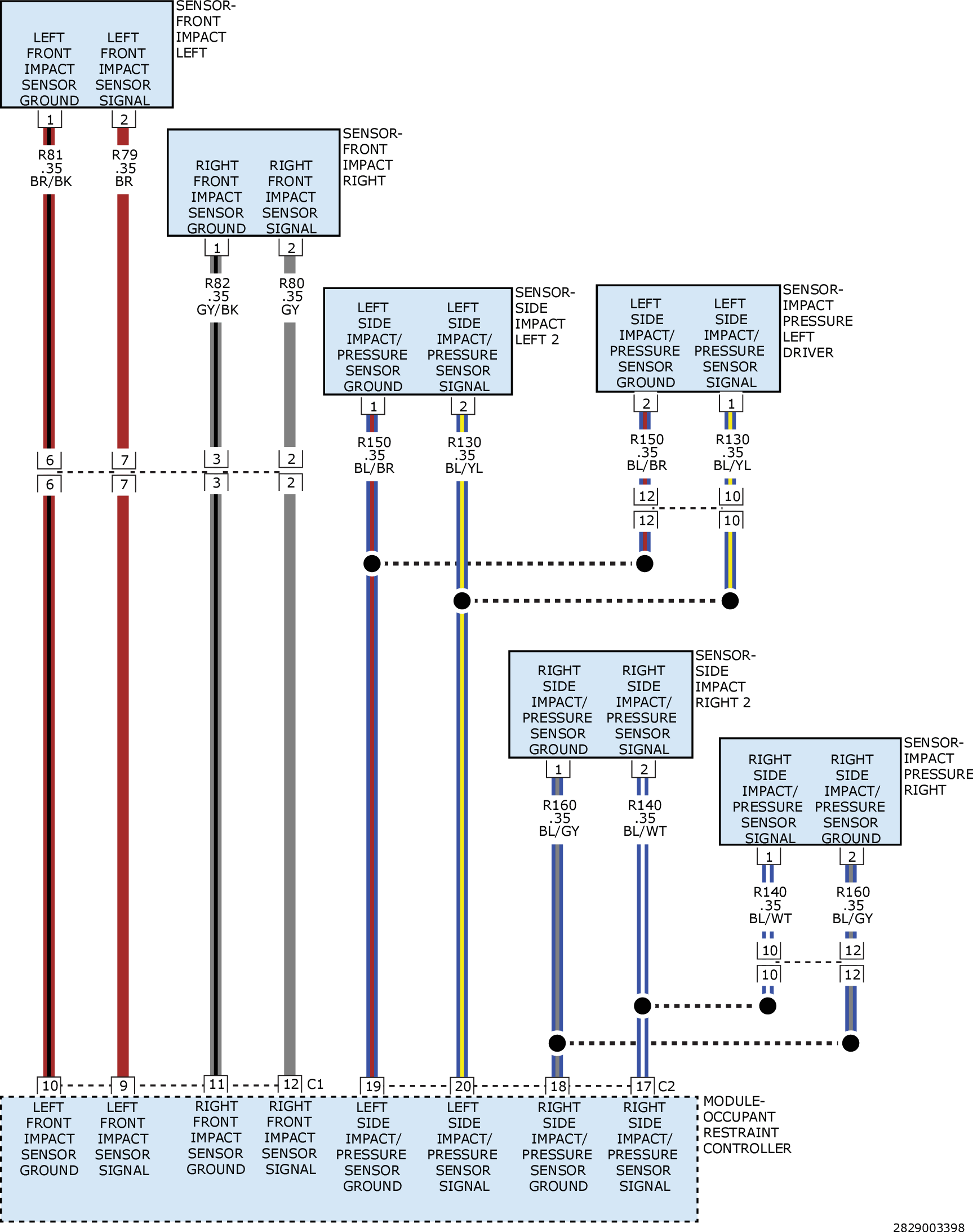

Fig 1: Side Impact, Front Impact Sensors & Impact Pressure Sensor Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
