Lamp, Backup: Removal: Bulb

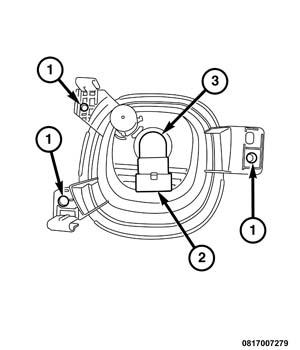

Fig 1: Bulb Retainer & Connector
GC0159084Courtesy of CHRYSLER GROUP, LLC
  1. Remove the reverse lamp assembly from the vehicle. Refer to LAMP .
  2. Rotate the bulb carrier (3) until it is unlatched and remove the carrier and bulb assembly straight back out of the lamp assembly.
  3. Remove the bulb from the bulb carrier.
