Engine Mount Neutralization

NOTE:

Typical left engine mount shown in illustration.

Remove or relocate components as required to access the engine mount bolts. Refer to INSULATOR, ENGINE MOUNT, RIGHT, REMOVAL , INSULATOR, ENGINE MOUNT, LEFT, REMOVAL and INSULATOR, ENGINE MOUNT, REAR, REMOVAL .

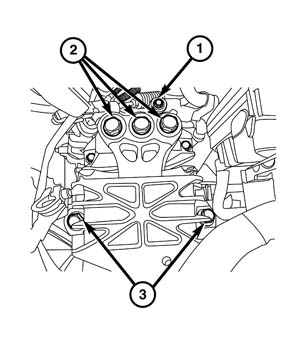

Fig 1: Coolant Tube Bracket Bolt, Transaxle Bracket Bolts & Frame Rail Bolts
Courtesy of CHRYSLER GROUP, LLC
Loosen the left engine mount to transmission bracket bolts (2).
Loosen the left engine mount to frame rail bolts (3).

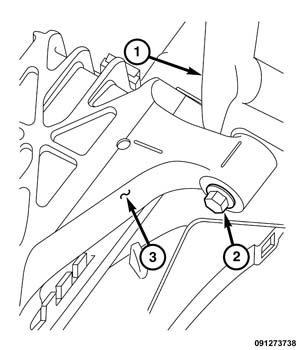

Fig 2: Strut Tower, Trans Mount & Bolt
Courtesy of CHRYSLER GROUP, LLC
Loosen the bolt (2) for the left engine mount (3) to strut tower (1) attachment, if equipped.

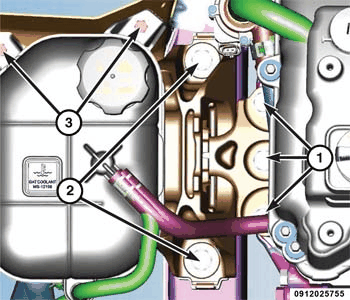

Fig 3: Right Engine Mount To Engine Bracket Bolts, Frame Rail Bolts & Coolant Reservoir Bolts
Courtesy of CHRYSLER GROUP, LLC

NOTE:
Typical right engine mount shown in illustration.
Remove or relocate components as required to access the engine mount bolts. Refer to INSULATOR, ENGINE MOUNT, RIGHT, REMOVAL , INSULATOR, ENGINE MOUNT, LEFT, REMOVAL and INSULATOR, ENGINE MOUNT, REAR, REMOVAL .
Loosen the right engine mount to engine bracket bolts (1).
Loosen the right engine mount to frame rail bolts (2).

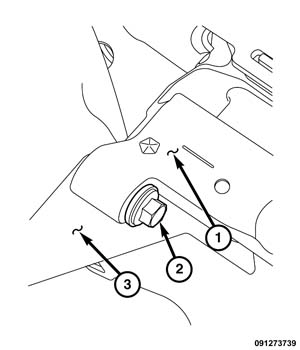

Fig 4: Strut Tower, Mount & Bolt
Courtesy of CHRYSLER GROUP, LLC
Loosen the bolt (2) for the right engine mount (1) to strut tower (3) attachment, if equipped.

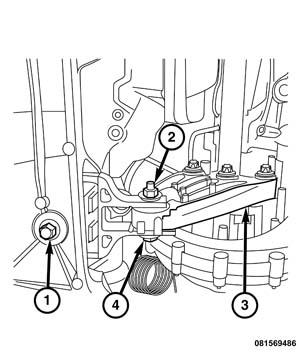

Fig 5: Rear Engine Isolator To Engine Mount Bracket Bolt
Courtesy of CHRYSLER GROUP, LLC

NOTE:
Typical rear engine mount shown in illustration.
Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
Remove the belly pan (if equipped). Refer to BELLY PAN, REMOVAL .
Loosen the rear engine mount to transmission bracket bolt (4) and nut (2).
Loosen the rear mount to crossmember bolt (1).
Center the powertrain in the engine mounts:
- Allow the powertrain to relax.
- Manually position the powertrain as close as possible to a position where the right and left engine mounts appear centered and are not skewed front-to-rear or side-to-side.
- Again, allow the powertrain to relax.
Fig 6: Rear Engine Isolator To Engine Mount Bracket Bolt
Courtesy of CHRYSLER GROUP, LLC

NOTE:
Typical rear engine mount shown in illustration.
Tighten the rear engine mount to crossmember bolt (1) to the proper specification. Refer to SPECIFICATIONS .
Tighten the rear engine mount to transmission bracket bolt (4) and nut (2) to the proper specification. Refer to SPECIFICATIONS .
Install the belly pan (if equipped). Refer to BELLY PAN, INSTALLATION .
Lower the vehicle.

Fig 7: Strut Tower, Mount & Bolt
Courtesy of CHRYSLER GROUP, LLC
Tighten the right engine mount to strut tower bolt (2) to the proper specification, if equipped. Refer to SPECIFICATIONS .

Fig 8: Right Engine Mount To Engine Bracket Bolts, Frame Rail Bolts & Coolant Reservoir Bolts
Courtesy of CHRYSLER GROUP, LLC

NOTE:
Typical right engine mount shown in illustration.
Tighten the right engine mount to frame rail bolts (2) to the proper specification. Refer to SPECIFICATIONS .
Tighten the right engine mount to engine bracket bolts (1) to the proper specification. Refer to SPECIFICATIONS .

Fig 9: Strut Tower, Trans Mount & Bolt
Courtesy of CHRYSLER GROUP, LLC
Tighten the left engine mount to strut tower bolt (2) to the proper specification, if equipped. Refer to SPECIFICATIONS .

Fig 10: Coolant Tube Bracket Bolt, Transaxle Bracket Bolts & Frame Rail Bolts
Courtesy of CHRYSLER GROUP, LLC

NOTE:
Typical left engine mount shown in illustration.
Tighten the left engine mount to frame rail bolts (3) to the proper specification. Refer to SPECIFICATIONS .
Tighten the left engine mount to transmission bracket bolts (2) to the proper specification. Refer to SPECIFICATIONS .
Install the components removed to access the engine mount bolts. Refer to INSULATOR, ENGINE MOUNT, RIGHT, INSTALLATION , INSULATOR, ENGINE MOUNT, LEFT, INSTALLATION and INSULATOR, ENGINE MOUNT, REAR, INSTALLATION .
