C635 DDCT/C635 Transaxle

  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Remove the belly pan. Refer to BELLY PAN, REMOVAL .

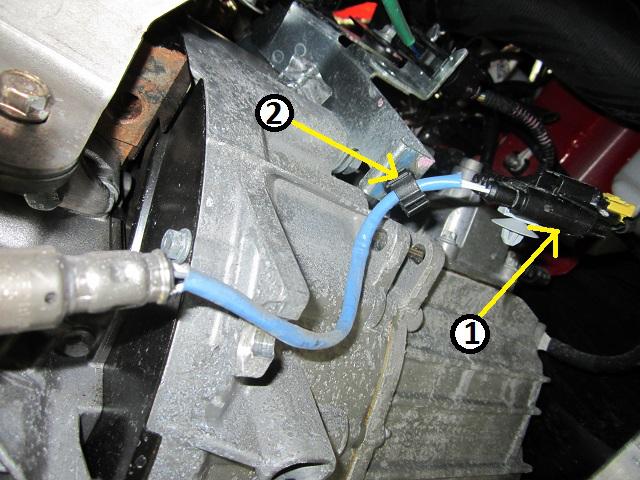

    Fig 1: Downstream Oxygen Sensor Connector & Retainer
    GC0157777Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the downstream oxygen sensor connector (1).
  4. Open the harness retainer (2).

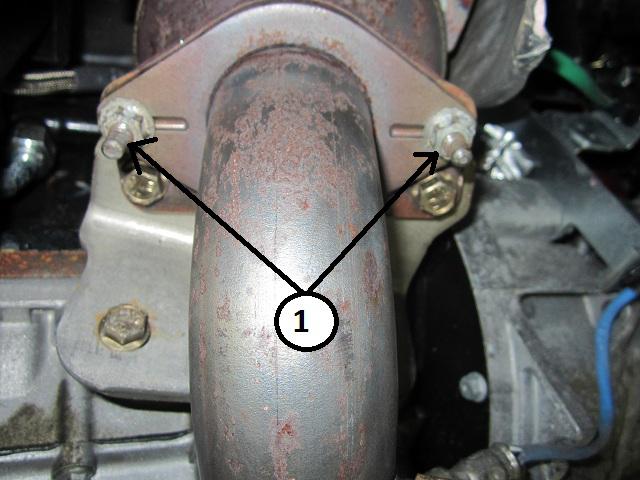

    Fig 2: Exhaust Pipe Flange Nuts
    GC0157781Courtesy of CHRYSLER GROUP, LLC
  5. Remove the exhaust pipe flange nuts (1).

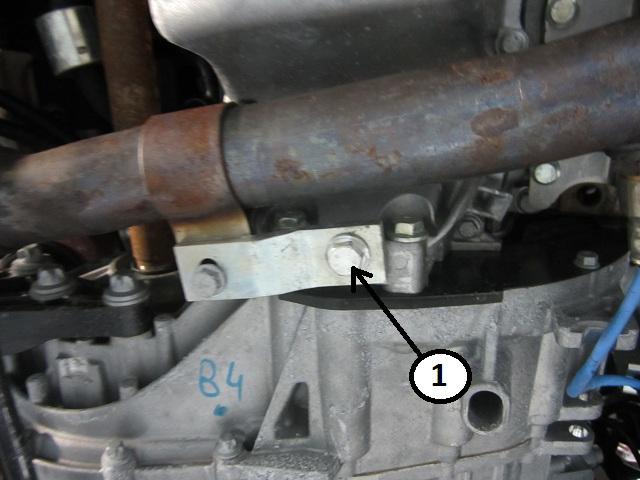

    Fig 3: Exhaust Pipe Bracket Bolt
    GC0157630Courtesy of CHRYSLER GROUP, LLC
  6. Remove the exhaust pipe bracket bolt (1).
  7. Position the exhaust pipe aside to allow for mount service.

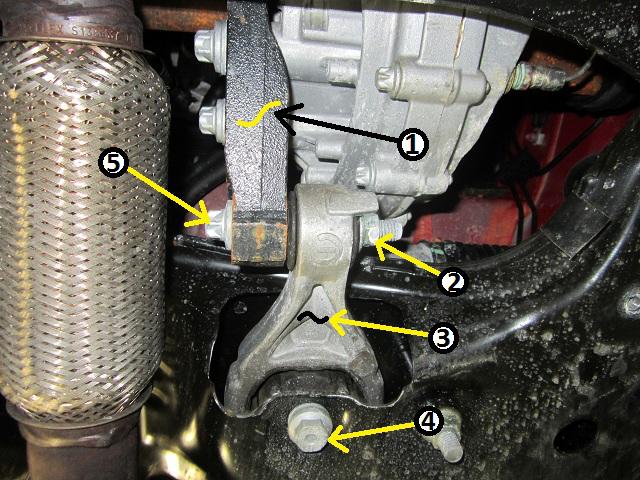

    Fig 4: Bracket, Nut, Mount & Through Bolts
    GC0157599Courtesy of CHRYSLER GROUP, LLC
  8. Remove the mount to bracket nut (2). Leave the bracket (1) attached to the transmission case.
  9. Remove the through bolt (5).
  10. Position the engine forward to allow for mount removal.
  11. Remove the isolator through bolt (4).
  12. Remove the mount (3) from the vehicle.
