C635 DDCT/C635 Transaxle

  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Remove the belly pan. Refer to BELLY PAN, REMOVAL .
  3. Lower the vehicle.
  4. Remove the battery and tray. Refer to TRAY, BATTERY, REMOVAL .
  5. Support transaxle with a suitable jack.

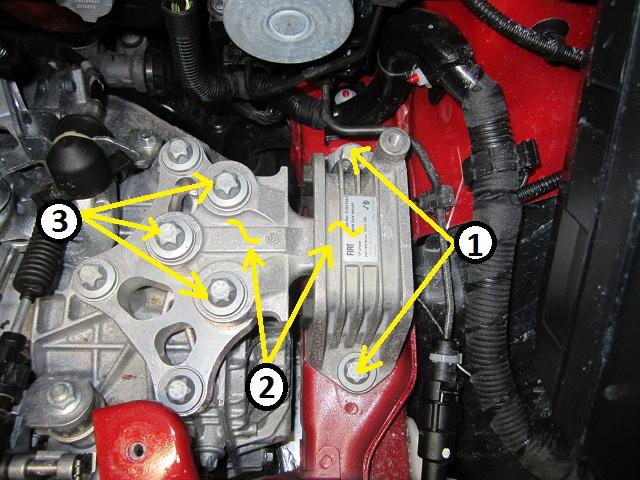

    Fig 1: Mount-To-Frame Rail Bolts, Mount & Mount-To-Transaxle Bracket Bolts
    GC0159040Courtesy of CHRYSLER GROUP, LLC
  6. Remove the three mount to transaxle bracket bolts (3).
  7. Remove the two mount to frame rail bolts (1).
  8. Remove the mount (2) from the vehicle.
