Unit, Front Lamp, Upper: Removal: Lamp

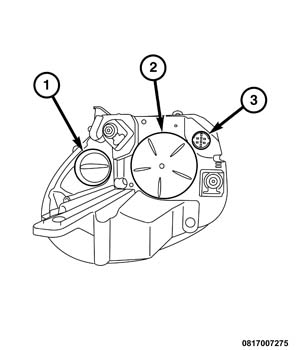

Fig 1: Upper Front Lamp Unit
GC0158671Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the battery negative cable.
  2. Disconnect the wiring harness (3) from the back of the headlamp assembly.
  3. Remove the front fascia. Refer to FASCIA, FRONT, REMOVAL .
  4. Remove the screws that secure the upper front combination lamp unit in place.
  5. Remove the upper front combination lamp unit.
