Lamp, Backup: Removal: Lamp

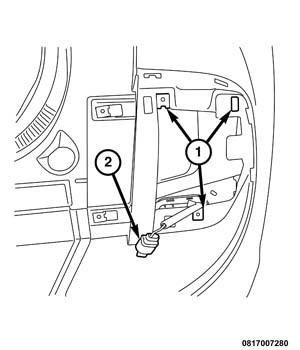

Fig 1: Electrical Connector & Fasteners
GC0158784Courtesy of CHRYSLER GROUP, LLC
  1. Remove the plastic trim encasing the reverse lamp assembly to access reverse lamp assembly fasteners.
  2. Remove the three fasteners (1) securing the reverse lamp assembly to the body.
    Fig 2: Bulb Retainer & Connector
    GC0159084Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the wiring harness from the connector (2) of the reverse lamp assembly.
  4. Remove the reverse lamp assembly from the vehicle.
