Sensor, Turbo Boost Pressure: Removal: Removal

WARNING: This page is about a different variant/trim than selected.

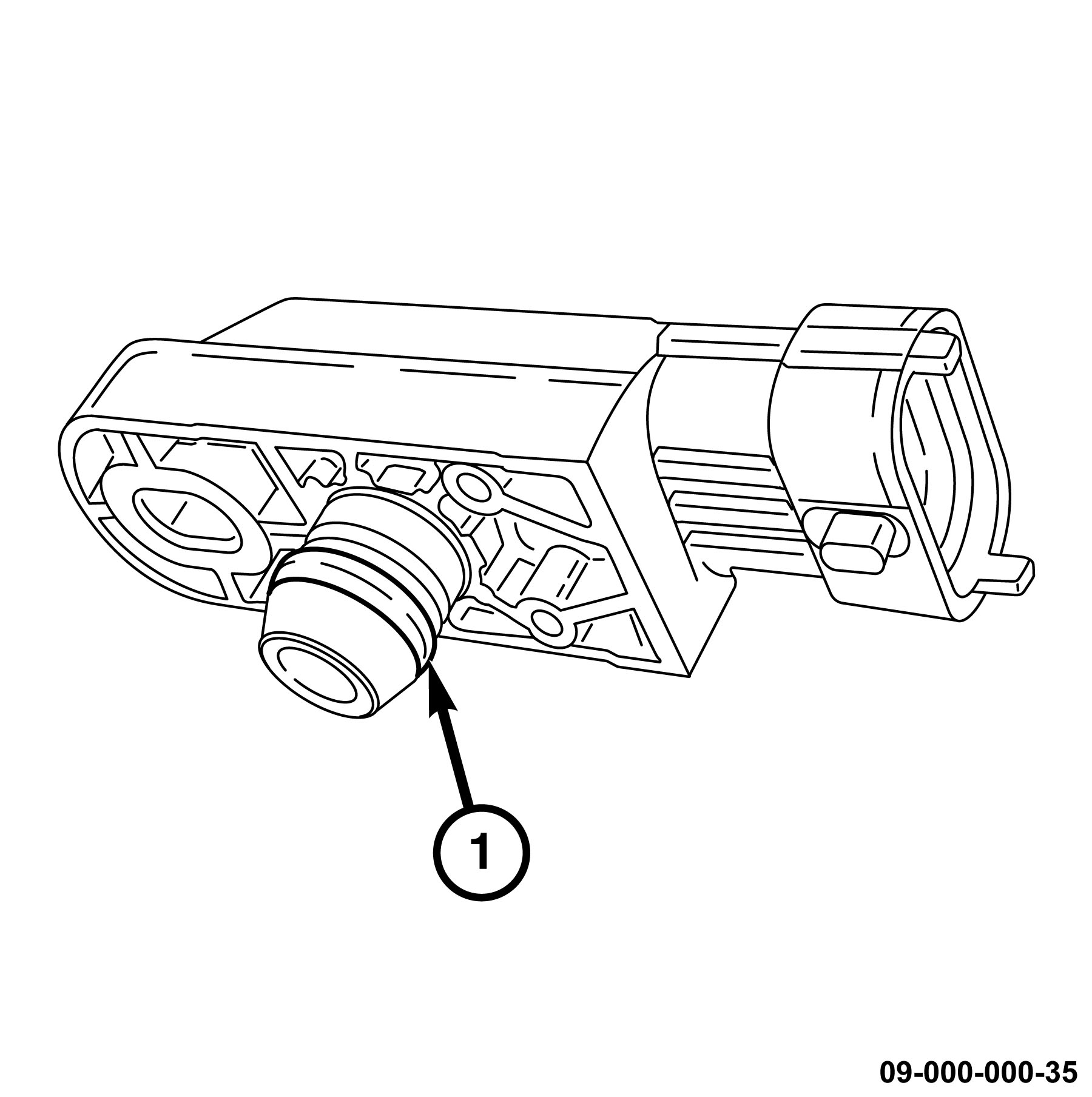

Fig 1: Turbocharger Boost Pressure Sensor
GC0155826Courtesy of CHRYSLER GROUP, LLC
  1. The turbocharger boost pressure sensor (1) is mounted to the charge air cooler (CAC) duct near the throttle body inlet.
  2. Disconnect battery cables.
  3. Remove the battery from the tray.
  4. Remove the battery tray.
  5. Disconnect the boost pressure sensor connector.
  6. Remove the screw securing the boost pressure sensor to the CAC duct.
  7. Remove the boost pressure sensor.
