Tube, Spark Plug: Removal: Removal

WARNING: This page is about a different variant/trim than selected.

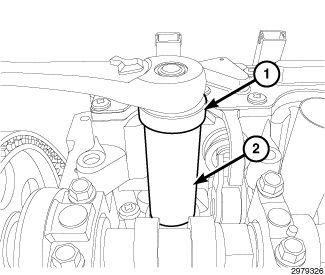

Fig 1: Spark Plug Tube Remover/Installer & Tube

Courtesy of CHRYSLER GROUP, LLC

NOTE:

Number 1 cylinder spark plug tube shown in illustration, all others similar.

Disconnect and isolate the negative battery cable.
Remove the cylinder head cover. Refer to COVER(S), CYLINDER HEAD, REMOVAL .
Using the (special tool #10280, Remover/Installer, Spark Plug Tube) (1), remove the tube (2) from the cylinder head and discard the tube.
Clean the area around the spark plug tube mounting with Mopar® Parts Cleaner or equivalent.
