Seal(S), Camshaft: Removal: Removal

WARNING: This page is about a different variant/trim than selected.

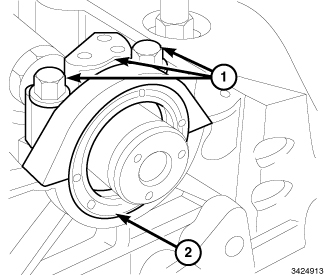

Fig 1: Camshaft Cap, Bolts & Seal
GC0153428Courtesy of CHRYSLER GROUP, LLC
  1. Remove the cylinder head cover. Refer to COVER(S), CYLINDER HEAD, REMOVAL .
  2. Remove the camshaft pulley. Refer to SPROCKET(S), TIMING BELT AND CHAIN, REMOVAL .
  3. Remove the bolts and the camshaft cap (1).
  4. Remove the camshaft seal (2).
