Sensor, Camshaft Position: Removal: Removal

WARNING: This page is about a different variant/trim than selected.
Fig 1: Air Cleaner Assembly, Intake Hose, Fittings & Clamp
GC0153787Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative battery cable.
  2. Remove the air cleaner body (1). Refer to BODY, AIR CLEANER, REMOVAL .
    Fig 2: PCV Hose, Vent Hose, Oil Separator Housing & Bolts
    GC0155887Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the PCV hose (1) from the intake manifold.
  4. Disconnect the vent hose (3) from the cylinder head cover.
  5. Remove three bolts (2) and remove the oil separator housing (4) from the cylinder head cover.

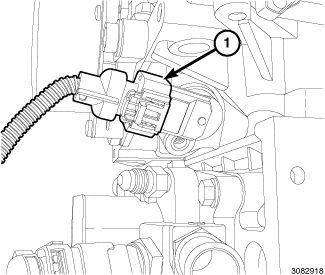

    Fig 3: Camshaft Position (CMP) Sensor Electrical Connector
    GC0152657Courtesy of CHRYSLER GROUP, LLC
  6. Unlock and disconnect the Camshaft Position (CMP) sensor wire harness connector (1).

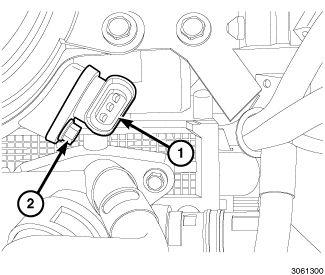

    Fig 4: Camshaft Position (CMP) Sensor & Bolt
    GC0152503Courtesy of CHRYSLER GROUP, LLC
  7. Remove the mounting bolt (2) and Camshaft Position (CMP) sensor (1).
    Fig 5: Camshaft Position (CMP) Sensor O-ring
    GC0152504Courtesy of CHRYSLER GROUP, LLC
  8. The Camshaft Position (CMP) sensor O-ring (1) can be reused if not damaged.
