Shaft, Output: Disassembly: Disassembly

WARNING: This page is about a different car, the 2015 Fiat 500. However, it is still accessible from the selected car via links, so may be relevant.

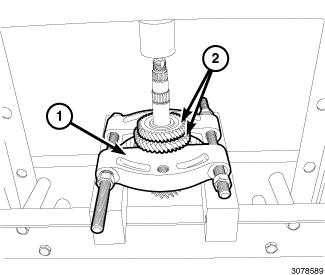

Fig 1: Removing Fourth Speed Driven Gear

Courtesy of CHRYSLER GROUP, LLC

Remove the fourth speed driven gear using Bearing Splitter (special tool #P-334, Splitter, Bearing).
Remove the fourth gear to third gear spacer.

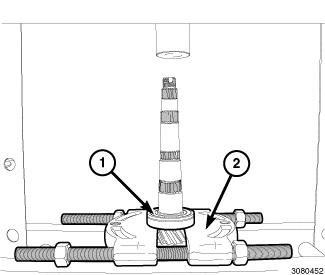

Fig 2: Removing Third & Second Driven Gears
Courtesy of CHRYSLER GROUP, LLC
Remove the third and second driven gears using Bearing Splitter (special tool #P-334, Splitter, Bearing).

Fig 3: First/Second Gear Synchronizer & Slider Ring
Courtesy of CHRYSLER GROUP, LLC
Remove the first/second gear synchronizer and slider ring (1).

Fig 4: Needle Bearing
Courtesy of CHRYSLER GROUP, LLC
Remove the needle bearing from the shaft.

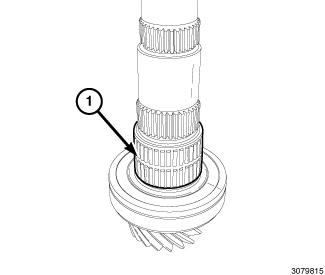

Fig 5: Removing/Installing Snap Ring
Courtesy of CHRYSLER GROUP, LLC
Remove the snap ring (1).

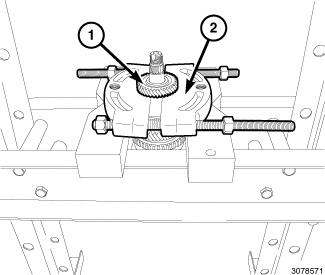

Fig 6: Removing First Driven Gear & First/Second Synchronizer Hub
Courtesy of CHRYSLER GROUP, LLC
Remove the first driven gear and the first/second synchronizer hub using Bearing Splitter (special tool #P-334, Splitter, Bearing).

Fig 7: Needle Bearing
Courtesy of CHRYSLER GROUP, LLC
Remove the needle bearing from the shaft.

Fig 8: Removing Rear Bearing
Courtesy of CHRYSLER GROUP, LLC
Remove the snap ring.
Remove the rear bearing from the shaft using Bearing Splitter (special tool #P-334, Splitter, Bearing).
