Differential, Transaxle: Assembly: Assembly

WARNING: This page is about a different car, the 2015 Fiat 500. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The differential case and side gears are not serviced separately and must be replaced as an assembly.

Fig 1: Ring Gear Bolts

Courtesy of CHRYSLER GROUP, LLC

Install the ring gear to the case.
Install the new ring gear bolts (1) and tighten to 88 N.m (65 ft. lbs.).

Fig 2: Installing Left Differential Bearing
Courtesy of CHRYSLER GROUP, LLC
Install the left side differential bearing (1) using an arbor press and MD 998909 Bearing Installer (2).

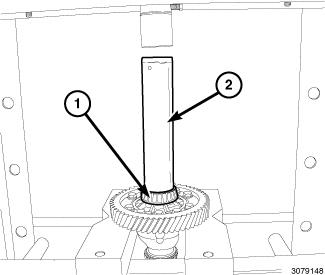

Fig 3: Installing Right Differential Bearing
Courtesy of CHRYSLER GROUP, LLC
Install the right side differential bearing (1) using an arbor press and (special tool #6448A, Installer, Bearing/Gear) Bearing Installer (2).
