Section 70 (Starting (Service Information) 500): Starter: Removal: Removal

WARNING: This page is about a different car, the 2015 Fiat 500. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Battery Tray, Connectors, Retainers, Nut & Bolts

Courtesy of CHRYSLER GROUP, LLC

Disconnect the negative and positive battery cables.
Remove the battery.
Disconnect the Powertrain Control Module (PCM) wire harness connectors.
Disconnect the PCM ground strap from the battery (-) terminal.
Disengage the two starter wire harness retainers (6) from the battery tray (3).
Disengage the engine wire harness connector (2) from the battery tray (3) and reposition.
Remove the nut (5) and two bolts (1).
Open the two wire harness retainers (3) and reposition the wire harness.

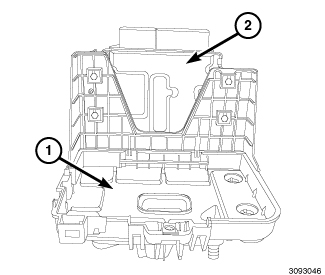

Fig 2: Battery Tray & PCM
Courtesy of CHRYSLER GROUP, LLC
Remove the battery tray (1) keeping the PCM (2) attached.

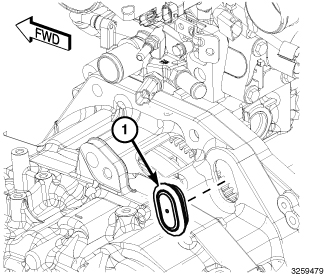

Fig 3: Starter Bolt Access Plug
Courtesy of CHRYSLER GROUP, LLC
Remove the starter bolt access plug (1) located on the back side of the transmission bell housing to gain access to the top starter bolt.

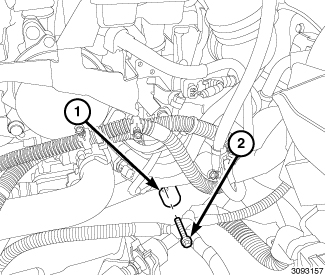

Fig 4: Starter Bolt & Access Hole
Courtesy of CHRYSLER GROUP, LLC
Remove the starter bolt (2) through the access hole (1) in the transmission bell housing.
Support and raise the vehicle. Refer to HOISTING .

Fig 5: Belly Pan
Courtesy of CHRYSLER GROUP, LLC
Remove the belly pan (1) covering the bottom side of the engine compartment.

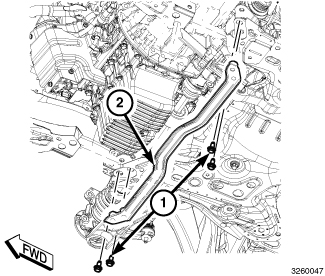

Fig 6: Lower Cradle Brace & Retainers
Courtesy of CHRYSLER GROUP, LLC
Remove the four bolts (1) and the lower cradle brace (2).

Fig 7: Starter Assembly, Connector & Fasteners
Courtesy of CHRYSLER GROUP, LLC
Remove the nut (1) from the starter solenoid (3).
Disconnect the starter solenoid wire harness connector (2).
Remove bolts (4) and the starter assembly (5) from the vehicle.
