Rail, Fuel: Removal: Removal

WARNING: This page is about a different car, the 2015 Fiat 500. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Intake Manifold & Fasteners

Courtesy of CHRYSLER GROUP, LLC

Remove the intake manifold. Refer to MANIFOLD, INTAKE, REMOVAL .
Place the intake on a suitable work bench.

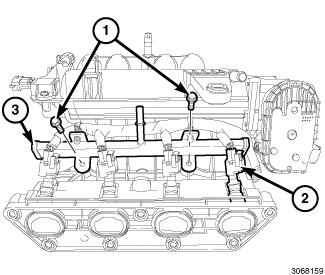

Fig 2: Fuel Rail, Connectors & Bolts
Courtesy of CHRYSLER GROUP, LLC
Remove the two fuel rail support bolts (1).
Using care. Remove the fuel rail (3) with the injectors from the intake manifold.
Remove the connectors (2) from the fuel injectors.

Fig 3: Fuel Rail, Injector & Retainer Clip
Courtesy of CHRYSLER GROUP, LLC
Remove the fuel injector retainer clips (2).
Using care. Remove the fuel injectors (3) from the fuel rail.
Remove the wiring harness from the fuel rail (1).
