C0037-01-Left Rear Speed Sensor - General Electrical Failure: Notes

WARNING: This page is about a different variant/trim than selected.

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

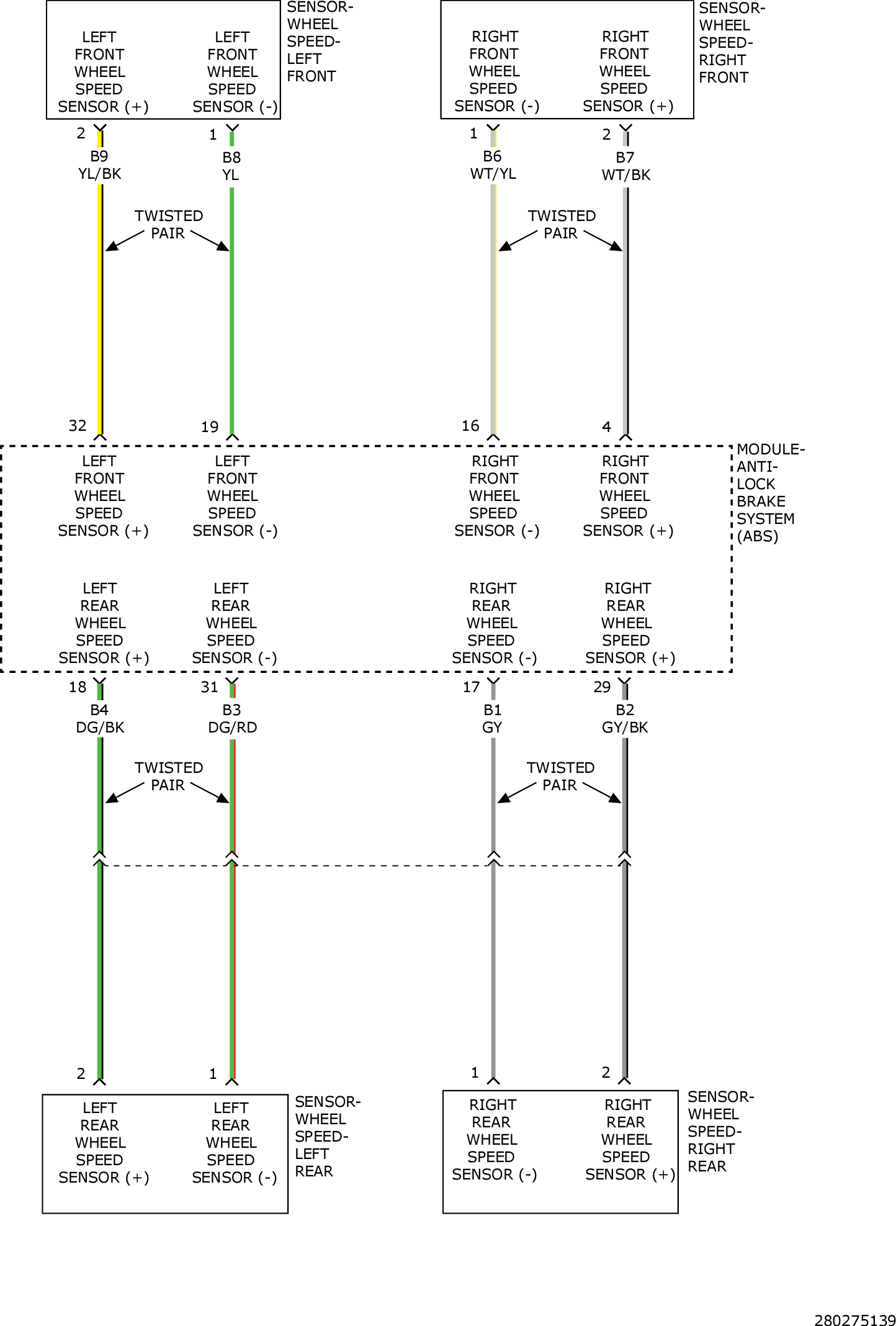

Fig 1: Wheel Speed Sensor Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
