No Response From Abs (Anti-Lock Brake System Module): Notes

WARNING: This page is about a different variant/trim than selected.

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

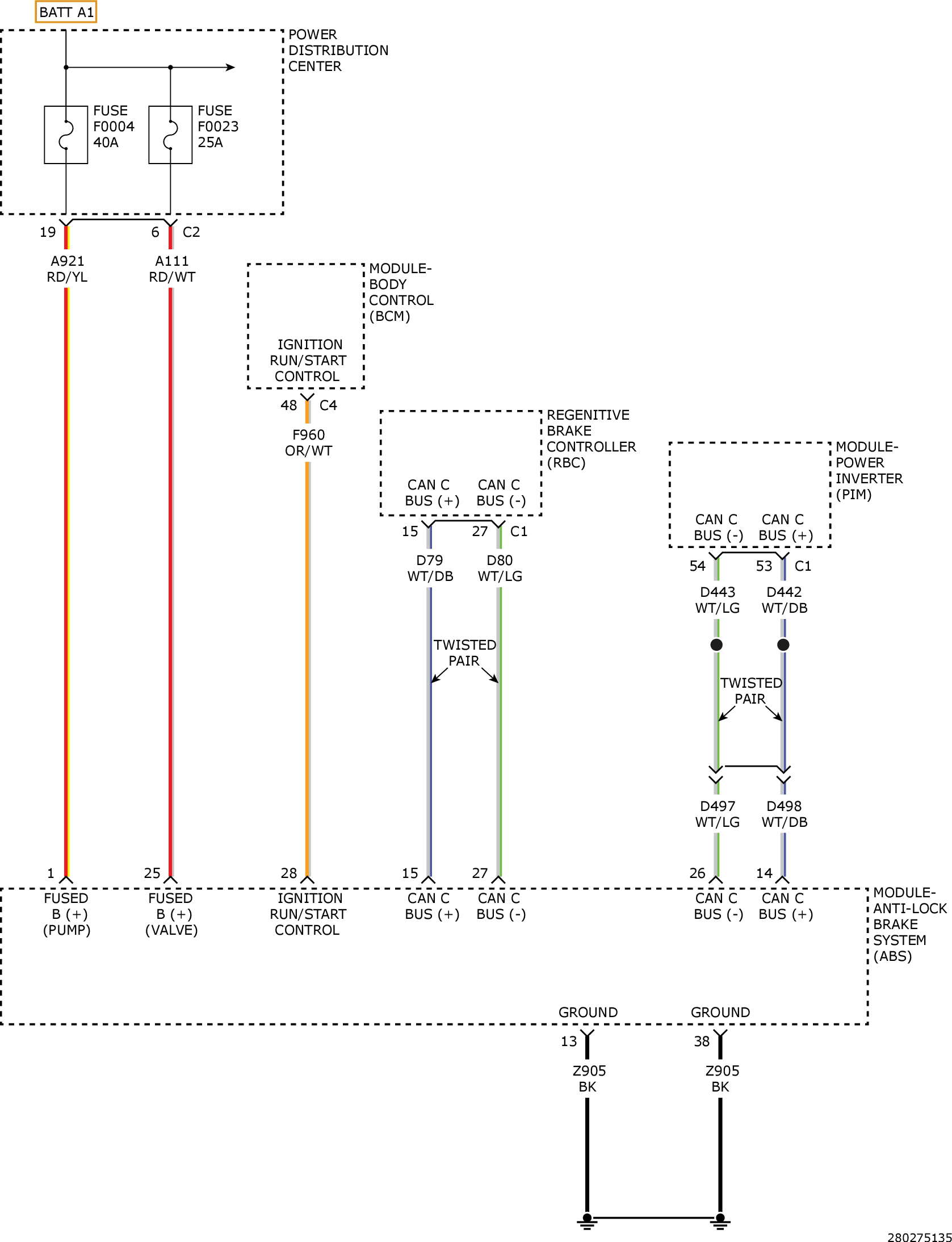

Fig 1: ABS Control Module Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
