Section 51 (Audio/Video/Entertainment/Connectivity (Service Information) 500 - Electric): Speaker: Installation: Tweeter

WARNING: This page is about a different variant/trim than selected.

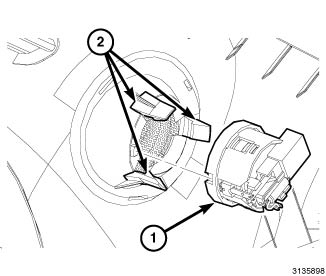

Fig 1: A-Pillar Trim Panel Clips & Tweeter

Courtesy of CHRYSLER GROUP, LLC

Install the tweeter (1) into the A-pillar trim panel clips (2).

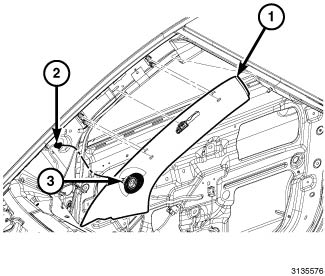

Fig 2: A-Pillar Trim, Harness & Tweeter
Courtesy of CHRYSLER GROUP, LLC
Connect the tweeter harness (2) to the tweeter (3).
Install the A-pillar trim panel (1). Refer to PANEL, A-PILLAR TRIM, INSTALLATION .
Connect the negative battery cable.
