Front Door

WARNING: This page is about a different variant/trim than selected.

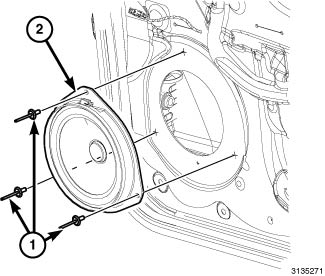

Fig 1: Front Door Speaker & Rivets
GC0152869Courtesy of CHRYSLER GROUP, LLC
  1. Position the speaker (2) to the door.
  2. Install the speaker rivets (1).

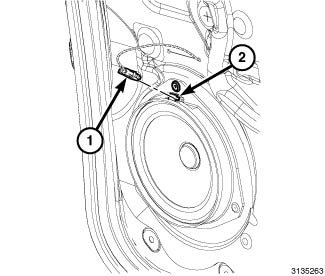

    Fig 2: Speaker & Electrical Connector
    GC0152868Courtesy of CHRYSLER GROUP, LLC
  3. Connect the speaker electrical connector (1) to the speaker (2).
  4. Install the door trim panel. Refer to PANEL, DOOR TRIM, INSTALLATION .
  5. Connect the negative battery cable.
