Module, Radio Antenna: Removal: Removal

WARNING: This page is about a different variant/trim than selected.

WARNING:

On vehicles equipped with the high voltage system, disconnecting the 12-volt battery negative cable alone will not power down the 12-volt system. You must perform the 12-volt Power Down procedure before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

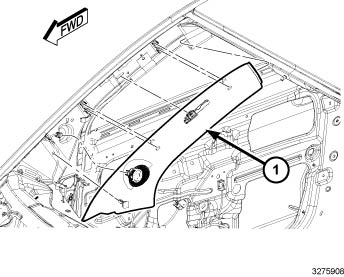

Fig 1: A-Pillar Trim

Courtesy of CHRYSLER GROUP, LLC

Disconnect the 12-volt negative battery cable.
Power down the high-voltage system. Refer to ELECTRIC VEHICLE CONTROL SYSTEM, STANDARD PROCEDURE .
Remove the passenger side A-pillar trim. Refer to PANEL, A-PILLAR TRIM, REMOVAL .

Fig 2: Antenna Module & Connectors
Courtesy of CHRYSLER GROUP, LLC
Disconnect the antenna module electrical connector (1).
Disconnect the antenna module antenna connector (2).

Fig 3: Antenna Module & Retainer
Courtesy of CHRYSLER GROUP, LLC
Remove the antenna module retainer (1) and remove the antenna module (2).
