Shifter, Transmission: Installation: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE:

Before installing the shifter assembly, verify that the wire harness below the temperature control unit is not in the path of the shifter's slider. If contact is possible the slider may distort or fracture.

Fig 1: Shifter Cable Locking Tab

Courtesy of CHRYSLER GROUP, LLC

Install the shifter assembly in the vehicle.
NOTE:
Make sure the locking tab on the gearshift cable is fully engaged after the gearshift cable is installed to the shifter housing.
Connect the cable (1) to the shifter lever.

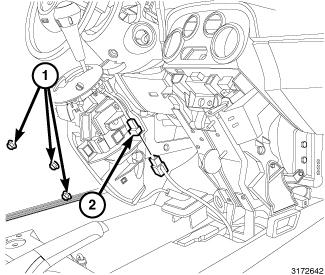

Fig 2: Shifter Connector & Mounting Fasteners
Courtesy of CHRYSLER GROUP, LLC
Tighten the fasteners (1) to 16 N.m (12 ft. lbs.).
Re-connect the electrical connection (2).
Install the lower instrument panel bezel. Refer to BEZEL, INSTRUMENT PANEL, LOWER, INSTALLATION .
Verify shifter operation and adjust cable as necessary. Refer to CABLE, SHIFT, ADJUSTMENTS .
