Fourth Gear Power Flow
WARNING: This page is about a different variant/trim than selected.

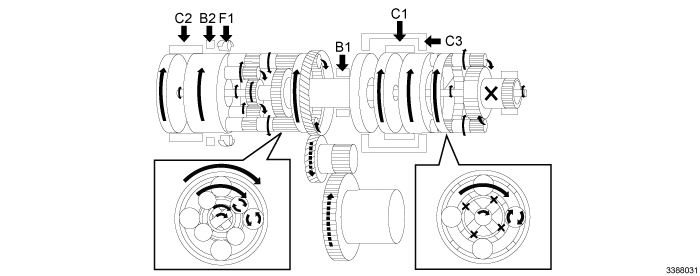

Courtesy of CHRYSLER GROUP, LLC FOURTH GEAR
| SHIFTER POSITION |
RANGE |
SOLENOID |
CLUTCH NUMBER |
BRAKE NUMBER |
ONE-WAY CLUTCH |
| SLC1 |
SLC2 |
SLC3 |
SLB1 |
S1 |
S2 |
C1 |
C2 |
C3 |
B1 |
B2 |
F1 |
| D |
FOURTH |
X |
- |
X |
- |
X |
- |
X |
X |
- |
- |
- |
- |
| X = in operation |
