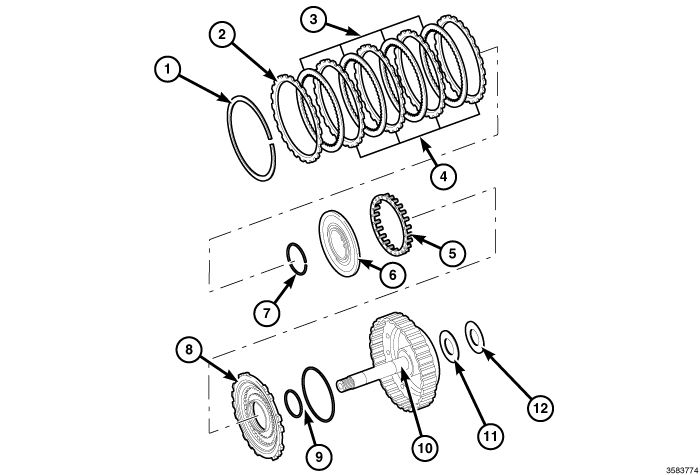

C2 Clutch
WARNING: This page is about a different variant/trim than selected.
Courtesy of CHRYSLER GROUP, LLC
| 1 - Snap Ring |
| 2 - Flange |
| 3 - Clutch Discs |
| 4 - Clutch Plates |
| 5 - Piston Return Spring |
| 6 - Clutch Balancer |
| 7 - Snap Ring |
| 8 - Clutch Piston |
| 9 - O-rings |
| 10 - Intermediate Shaft |
| 11 - Thrust Bearing |
| 12 - Bearing Race |
