Screen-Air Inlet

WARNING: This page is about a different variant/trim than selected.

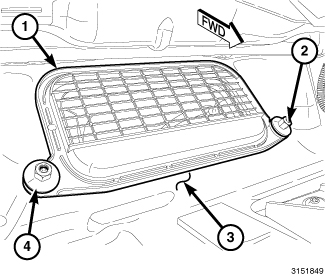

Fig 1: Air Inlet Screen & Plastic Nuts
GC0152932Courtesy of CHRYSLER GROUP, LLC
  1. Position the air inlet screen (1) to the cowl panel (3).
  2. Install the two plastic nuts (2 and 4) that secure the air inlet screen to the cowl panel. Tighten the nuts securely.
  3. Install the cowl panel cover. Refer to COVER, COWL PANEL, INSTALLATION .
