Housing-Air Inlet

WARNING: This page is about a different variant/trim than selected.

NOTE:

If the foam seal on the inlet housing is deformed or damaged, the seal must be replaced.

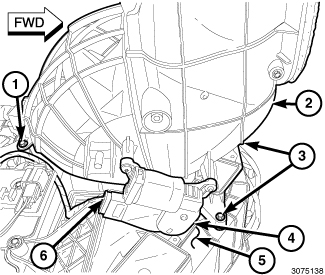

Fig 1: Recirculation Door Actuator & Connector

Courtesy of CHRYSLER GROUP, LLC

Position the air inlet housing (2) onto the HVAC housing (5).
Install the three screws (1 and 3) that secure the air inlet housing to the HVAC housing. Tighten the screws to 0.8 N.m (7 in. lbs.).
Connect the wire harness connector (6) to the recirculation door actuator (4).
Install the HVAC housing assembly. Refer to HOUSING, HVAC, INSTALLATION .
