Transducer, A/C Pressure: Installation: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE:

Use only the specified O-ring seal, as it is made of special material for R-134a. Use only refrigerant oil of the type required for this system.

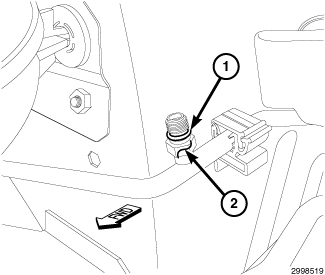

Fig 1: Liquid Line Fitting O-Ring

Courtesy of CHRYSLER GROUP, LLC

Lubricate a new rubber O-ring seal (1) with clean refrigerant oil and install it onto the A/C liquid line fitting (2).

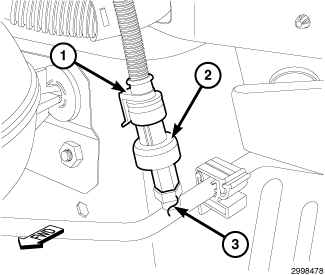

Fig 2: Liquid Line, A/C Pressure Transducer & Connector
Courtesy of CHRYSLER GROUP, LLC
Install the A/C pressure transducer (2) onto the A/C liquid line (3). Tighten the A/C pressure transducer to 5.1 N.m (45 in. lbs.).
Connect the wire harness connector (1) to the A/C pressure transducer.
Connect the 12-volt negative battery cable.
Power up the high-voltage system. Refer to ELECTRIC VEHICLE CONTROL SYSTEM, STANDARD PROCEDURE .
