Automatic Temperature Control (ATC)

WARNING: This page is about a different variant/trim than selected.

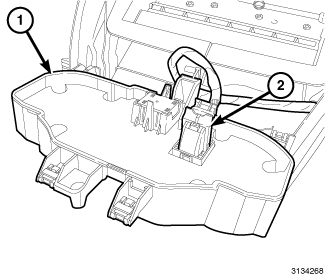

Fig 1: A/C Heater Control & Connector
GC0152866Courtesy of CHRYSLER GROUP, LLC
  1. Position the A/C heater control (1) to the instrument panel and connect the HVAC wire harness connector (2).

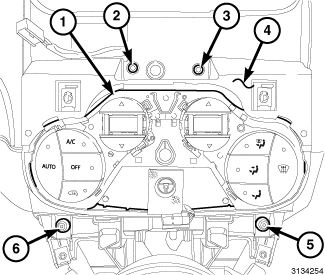

    Fig 2: A/C Heater Control & Screws
    GC0152865Courtesy of CHRYSLER GROUP, LLC
  2. Install the instrument panel cover. Refer to COVER, INSTRUMENT PANEL, INSTALLATION .
  3. Install the four screws (2, 3, 5 and 6) that secure the A/C heater control (1) to the instrument panel cover (4). Tighten the screws securely.
  4. Install the instrument panel center bezel. Refer to BEZEL, INSTRUMENT PANEL, CENTER, INSTALLATION .

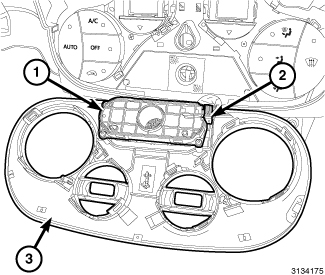

    Fig 3: Switch Pod & Connector
    GC0152863Courtesy of CHRYSLER GROUP, LLC
  5. Position the control panel (3) to the instrument panel and connect the HVAC wire harness connector (2) to the accessory switch pod (1).

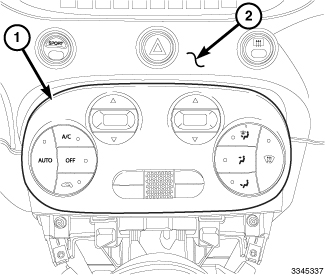

    Fig 4: Control Panel
    GC0153288Courtesy of CHRYSLER GROUP, LLC
  6. Position the control panel (1) to the instrument panel (2) and engage the retaining tabs that secure the panel to the A/C heater control. Make sure the retaining tabs are fully engaged.
  7. Connect the 12-volt negative battery cable.
  8. Power up the high voltage system. Refer to ELECTRIC VEHICLE CONTROL SYSTEM, STANDARD PROCEDURE .
  9. Initiate the Actuator Calibration function using a scan tool. Refer to STANDARD PROCEDURE .
