Mount, Motor: Installation: Right

WARNING: This page is about a different variant/trim than selected.

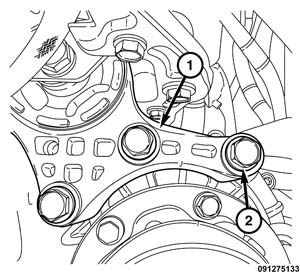

Fig 1: Right Motor Mount & Bolts
GC0157609Courtesy of CHRYSLER GROUP, LLC
  1. Install the right motor mount (1), and install the three motor mount bolts (2). Tighten the bolts to 55 N.m (41 ft. lbs.).
    Fig 2: RH Front Motor Mount Through-Bolt
    GC0157753Courtesy of CHRYSLER GROUP, LLC
  2. Install and tighten the right motor mount through-bolt (1) to 100 Nm (74 ft. lbs.).

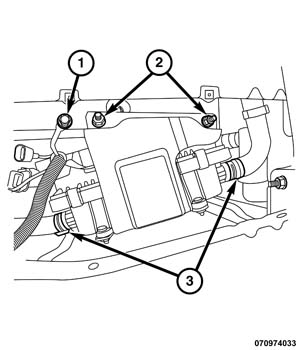

    Fig 3: Battery Coolant Heater (BCH) Nuts & Ground Strap Bolt
    GC0157840Courtesy of CHRYSLER GROUP, LLC
  3. Install the two Battery Coolant Heater (BCH) nuts (2) and tighten to 20 Nm (15 ft. lbs.).
  4. Install the BCH ground strap bolt (1) and tighten to 12 Nm (9 ft. lbs.).

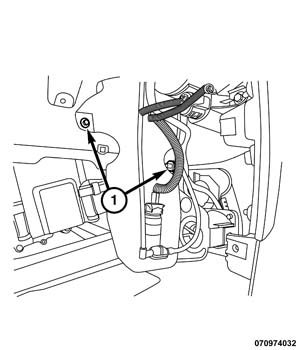

    Fig 4: Washer Bottle Bolts
    GC0157809Courtesy of CHRYSLER GROUP, LLC
  5. Install the right front wheelhouse splash shield. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, INSTALLATION .

    .
