Mount, Motor: Installation: Left
WARNING: This page is about a different variant/trim than selected.
- Install the left motor mount, and the three left motor mount bolts. Tighten the bolts to 55 Nm (41 ft. lbs.).
Courtesy of CHRYSLER GROUP, LLC

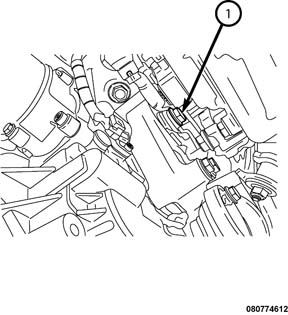

- Install and tighten the left motor mount through-bolt (1) to 100 Nm (74 ft. lbs.).
- Install the left front wheel and tire.
