Compressor, Electric Air Conditioning (EAC): Installation: Installation

WARNING: This page is about a different variant/trim than selected.

WARNING:

When performing any repairs that involve contact with high voltage components or systems, the technician performing repairs on the vehicle must verify that the system remains powered down during high voltage repairs.

This must be done by removing the service disconnect.
The high voltage check out procedure must also be performed to ensure that the vehicle is properly powered down.
The technician must know the whereabouts of the service disconnect throughout the repair.
The technician must ensure that no one reconnects the service disconnect while service is being performed.
The technician must recheck that the service disconnect has not been reinstalled in cases where the vehicle was unattended.

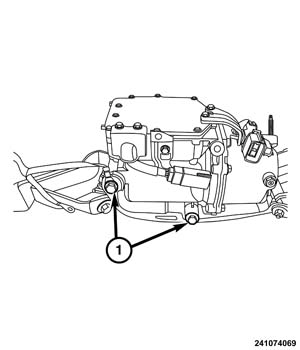

Fig 1: Electric A/C Compressor (EAC) Bracket Bolts

Courtesy of CHRYSLER GROUP, LLC

Install the electric air conditioning compressor (EAC) onto the EAC bracket, and install and tighten the two EAC bolts (1) to 20 Nm (15 lb. ft.).

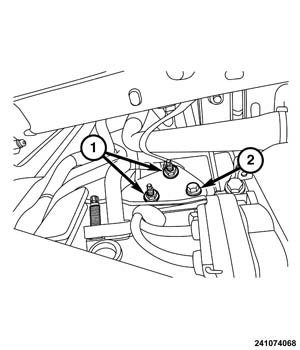

Fig 2: Electric A/C Compressor (EAC) Front Bracket Nuts & Bolt
Courtesy of CHRYSLER GROUP, LLC
Install and tighten the two EAC front bracket nuts (1), and the EAC front bracket bolt (2) to 20 Nm (15 ft. lbs.).

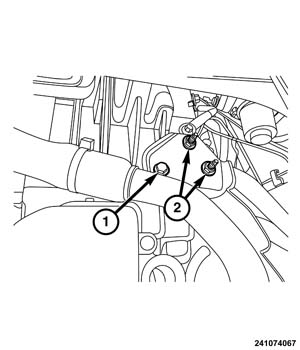

Fig 3: Electric A/C Compressor (EAC) Rear Bracket Nuts & Bolt
Courtesy of CHRYSLER GROUP, LLC
Install and tighten the two EAC rear bracket nuts (2), and the EAC rear bracket bolt (1) to 20 Nm (15 ft. lbs.).

Fig 4: Ground Strap Bolt
Courtesy of CHRYSLER GROUP, LLC
Install and tighten the EAC ground strap bolt (1) to 11 Nm (8 ft. lbs.).

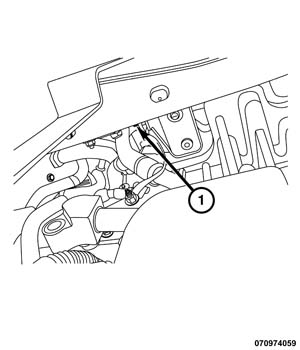

Fig 5: Electric A/C Compressor (EAC) Suction Fitting Nut
Courtesy of CHRYSLER GROUP, LLC
Install a new O-ring seal on the EAC suction fitting. Connect the fitting, and install and tighten the EAC suction fitting nut (1) to 11 Nm (8 ft. lbs.).

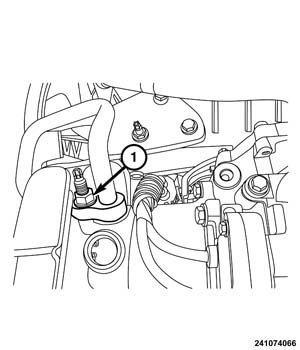

Fig 6: electric A/C compressor (EAC) Discharge Fitting Nut
Courtesy of CHRYSLER GROUP, LLC
Install a new O-ring seal on the EAC discharge fitting. Connect the fitting, and install and tighten the EAC discharge fitting nut (1) to 11 Nm (8 ft. lbs.).

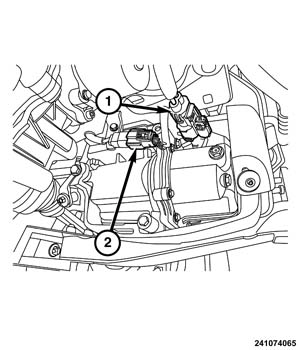

Fig 7: Electric A/C Compressor (EAC) High-Voltage & 12-Volt Electrical Connector
Courtesy of CHRYSLER GROUP, LLC
Connect the EAC 12-volt electrical connector (2).
Connect the EAC high-voltage electrical connector (1).
Connect the negative 12-volt battery cable.
Evacuate the refrigerant system. Refer to HIGH-VOLTAGE BATTERY COOLING AND HEATING SYSTEM, STANDARD PROCEDURE .
Charge the refrigerant system. Refer to HIGH-VOLTAGE BATTERY COOLING AND HEATING SYSTEM, STANDARD PROCEDURE .
Perform the LOSS OF ISOLATION CHECK. Refer to LOSS OF ISOLATION CHECK .
Power up the high-voltage system. Refer to ELECTRIC VEHICLE CONTROL SYSTEM, STANDARD PROCEDURE .
Install the electric motor beauty cover. Refer to MOUNT, MOTOR, INSTALLATION .
