Standard Procedure - Front Washer Nozzle Adjustment
WARNING: This page is about a different variant/trim than selected.

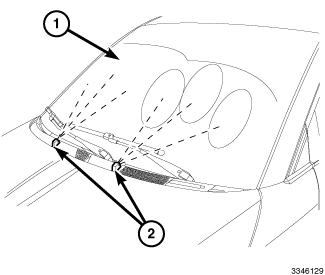

- Operate the front windshield washers to verify that all three streams from each front washer nozzle are aimed to hit the windshield glass within the wiper pattern (1).
- If either front nozzle fails the aim check, use a small screwdriver to rotate the screw on the left side of the nozzle hood (2) to adjust the streams up or down as required.
