Sport Seat
On vehicles equipped with the high voltage system, disconnecting the 12-volt battery negative cable alone will not power down the 12-volt system. You must perform the 12-volt Power Down procedure before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbags, airbag curtains, knee blocker, seat belt tensioner, impact sensor or instrument panel component diagnosis or service. Disconnect the IBS/negative battery cable assembly from the negative battery post, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.
- Position the passenger side front seat to its most forward position for easiest access to the front seat mounting hardware.
- Perform the 12-Volt Power Down procedure. Refer to ELECTRIC VEHICLE CONTROL SYSTEM, STANDARD PROCEDURE .
- Remove the passenger side front seat from the vehicle. Refer to SEAT, FRONT, REMOVAL .
- Remove the trim from the front seat cushion foam and frame. Refer to COVER, SEAT CUSHION, FRONT, REMOVAL .
- If the vehicle is so equipped, remove the heater mat from the seat cushion foam. Refer to PAD, HEATER, REMOVAL .

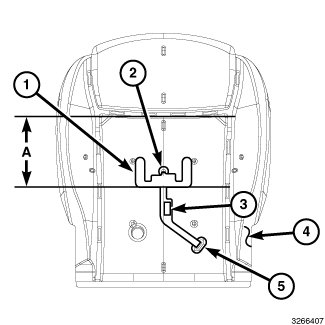

- Reach under the back of the front seat cushion frame to access and disconnect the Occupant Detection Sensor (ODS) (1) pigtail wire connector from the seat wire harness.
- Disengage the ODS hot melt block and pigtail wire from the clearance hole (5) near the back of the seat cushion foam (4).
- Disengage the ODS locator tab from the locator hole (2) near the center of the seat cushion foam.
- Disengage the adhesive patch (3) of the ODS from the top surface of the seat cushion foam.
- Remove the ODS from the seat cushion.
