Retractor, Seat Belt: Removal: Rear
To avoid serious or fatal injury during and following any seat belt or child restraint anchor service, carefully inspect all seat belts, buckles, mounting hardware, retractors, tether straps, and anchors for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or ineffective buckle or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child restraint anchor or the unit to which the anchor is integral that has been bent or damaged. Never attempt to repair a seat belt or child restraint component. Always replace damaged or ineffective seat belt and child restraint components with the correct, new and unused replacement parts listed in the Mopar® Parts Catalog. Failure to follow these instructions may result in possible serious or fatal injury.
- Remove the rear seat cushion from the vehicle. Refer to COVER, SEAT CUSHION, REAR, REMOVAL .

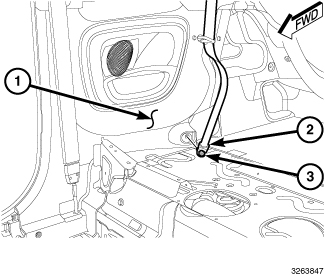

- Remove the screw (3) that secures the rear seat belt lower anchor (2) to the quarter inner panel (1).
- Remove the upper trim from the inside of the C-pillar. Refer to PANEL, C-PILLAR TRIM, REMOVAL .
- Pull the seat belt lower anchor through the seat belt opening in the upper C-pillar trim.
- Remove the screw (1) that secures the seat belt turning loop (2) to the upper C-pillar.
- Remove the seat belt turning loop from the upper C-pillar.
- Move the trim from the quarter inner panel far enough to access the seat belt retractor (3). Refer to PANEL, QUARTER TRIM, REAR, REMOVAL .
- Remove the screw (4) that secures the retractor to the inner C-pillar.
- Disengage the T-tab on the retractor bracket from the T-slot in the inner C-pillar.
- Remove the rear seat belt and retractor from the inner C-pillar as a unit.
