B165F-14-Front Fog Lamp Control - Circuit Short To Ground Or Open: Notes

WARNING: This page is about a different variant/trim than selected.

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

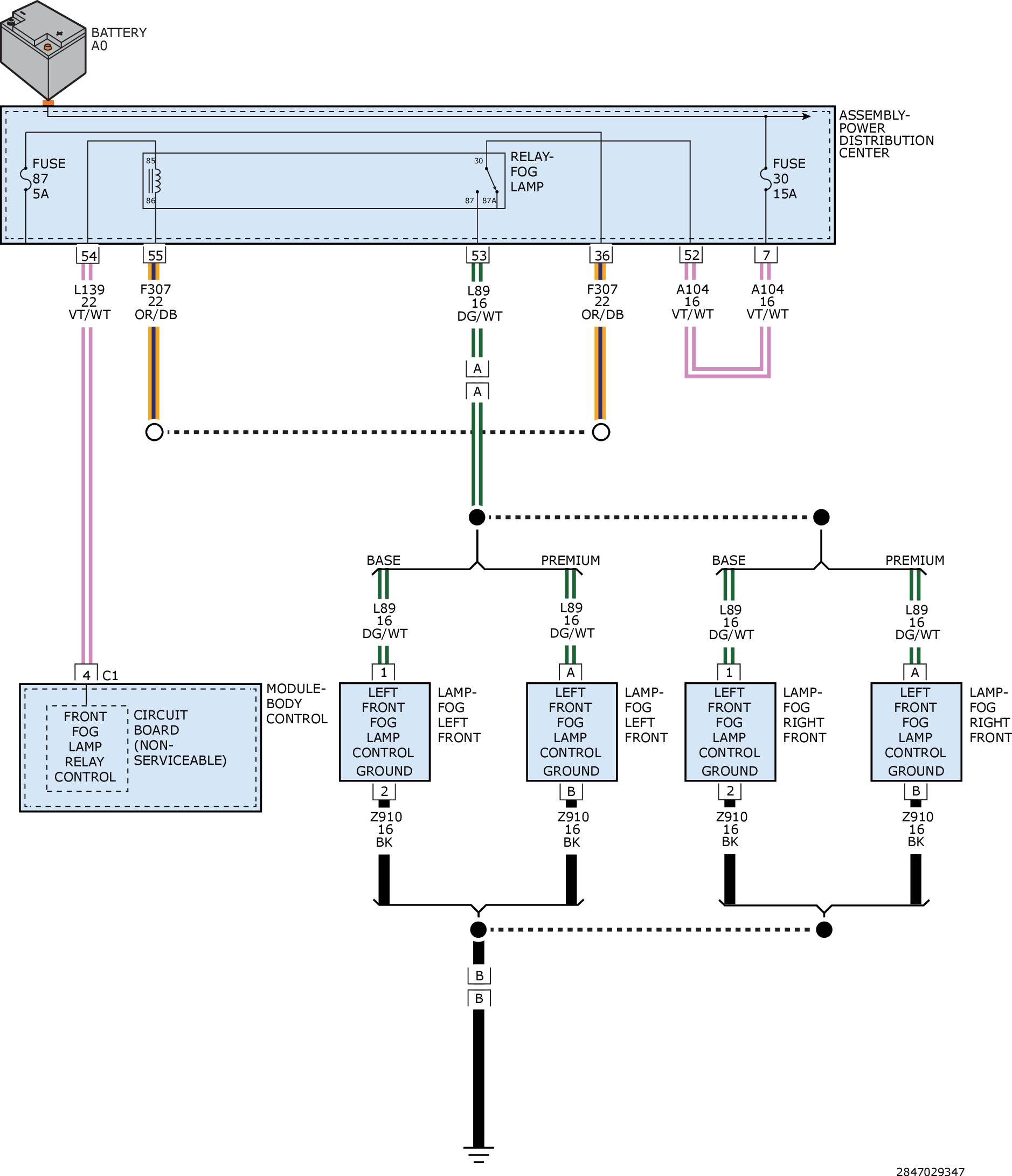

Fig 1: Fog Lamps Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
