Tray, Battery: Installation: Installation

DO NOT REUSE THE BATTERY TRAY BOLTS. IF THE BOLTS ARE MOVED AFTER FINAL TORQUE, THEY MUST BE REPLACED.

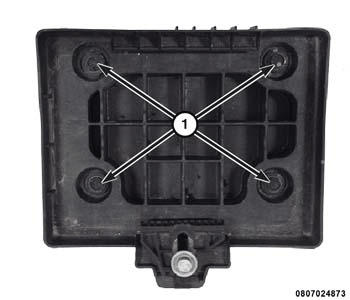

Fig 1: Battery Tray Bolts

Courtesy of CHRYSLER GROUP, LLC

1. Install the battery tray into position.
2. Install four

   NEW

   bolts,

3. Tighten the bolts (1) to 25 N.m (18 ft. lbs.).
4. Install the battery (2). Refer to BATTERY, INSTALLATION  .
