Positive Battery

WARNING: This page is about a different variant/trim than selected.

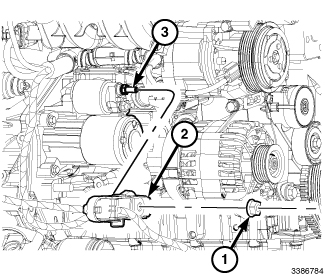

Fig 1: Starter Solenoid, Connector & Retainer
GC0153386Courtesy of CHRYSLER GROUP, LLC
  1. Connect the starter solenoid harness connector (2).
  2. Install the retainer (1) from the starter solenoid (3).

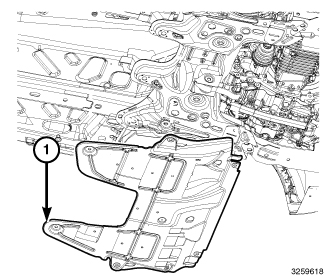

    Fig 2: Belly Pan
    GC0153133Courtesy of CHRYSLER GROUP, LLC
  3. Instal the belly pan (1) covering the bottom side of the engine compartment.

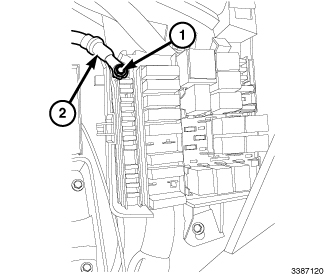

    Fig 3: B+ Retainer & Cable
    GC0153387Courtesy of CHRYSLER GROUP, LLC
  4. Install the B+ cable (2) and install the B+ retainer (1).

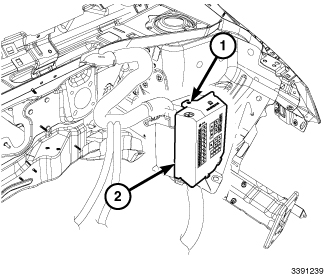

    Fig 4: PDC Lid Retainer & Cover
    GC0153397Courtesy of CHRYSLER GROUP, LLC
  5. Install the PDC cover (2).
  6. Install the PDC lid retainer (1).
  7. Connect the negative and positive battery cables.
