Valve, Purge Control: Removal: Removal

WARNING: This page is about a different car, the 2015 Fiat 500. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Belly Pan & Fasteners
GC0153109Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative battery cable.
  2. Remove the belly pan (1). Refer to BELLY PAN, REMOVAL .

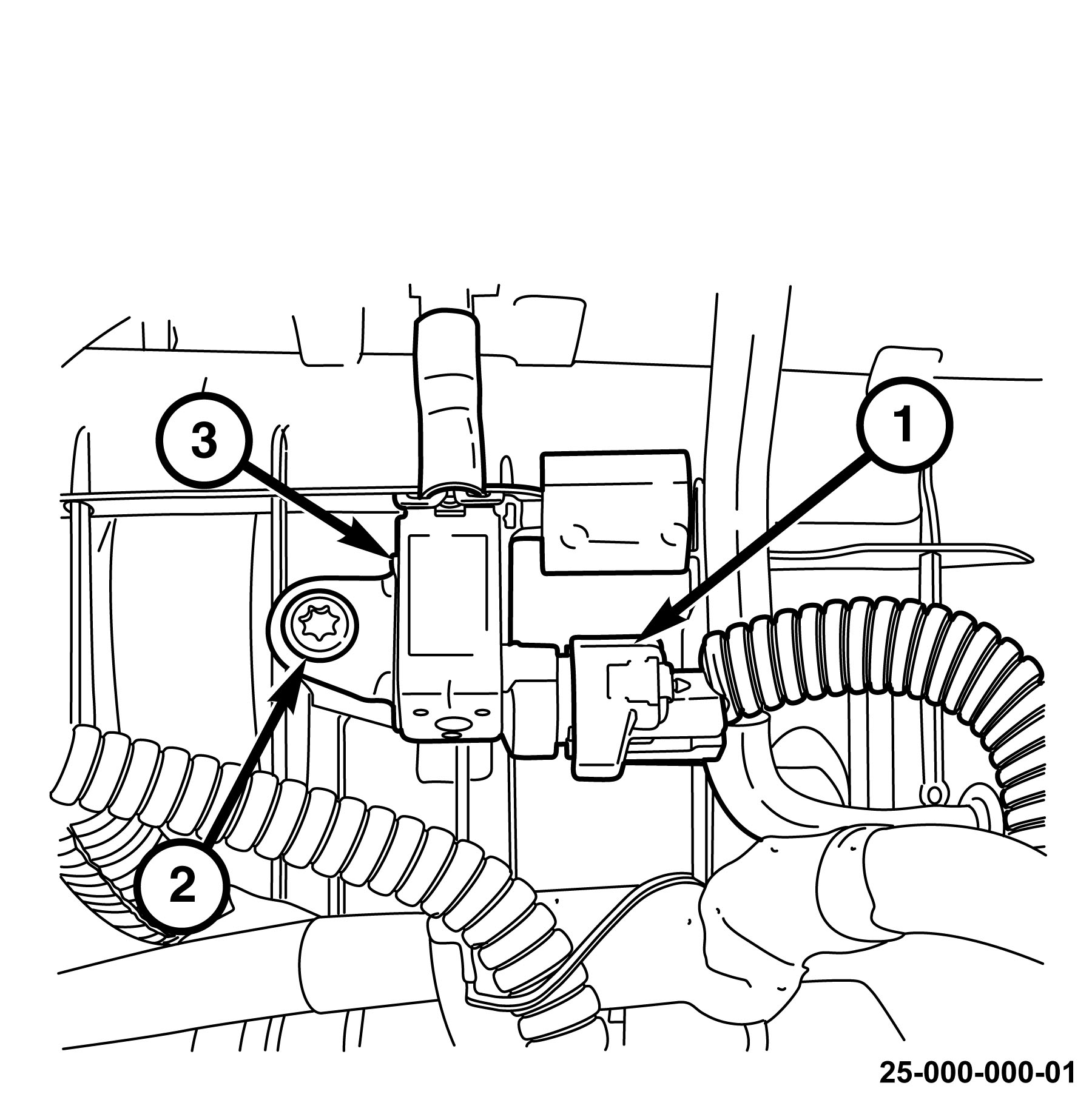

    Fig 2: Lower Purge Control Valve, Connector & Bolt
    GC0156299Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the purge control valve (3) wire harness connector (1).
  4. Disconnect the vacuum hose from the purge control valve (3).
  5. Remove bolt (2) and the purge control valve (3).
