Valve, Positive Crankcase Ventilation (PCV): Installation: 1.4L

WARNING: This page is about a different car, the 2015 Fiat 500. However, it is still accessible from the selected car via links, so may be relevant.

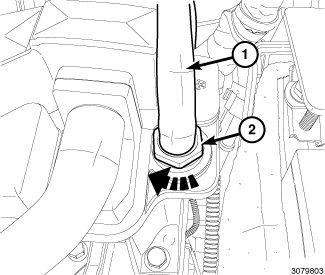

Fig 1: Installing PCV Valve

Courtesy of CHRYSLER GROUP, LLC

Lightly lubricate the PCV valve O-ring seal with clean engine oil.
Install the PCV valve and tighten to 2.5 N.m (22 in. lbs.).
Install the PCV hose (1).

Fig 2: Engine Cover
Courtesy of CHRYSLER GROUP, LLC
On non-turbocharged engine, install engine cover (1).

Fig 3: Air Cleaner Assembly, Intake Hose, Fittings & Clamp
Courtesy of CHRYSLER GROUP, LLC
If equipped with a turbocharger, install the air cleaner body (1). Refer to BODY, AIR CLEANER, INSTALLATION .
